AJA Mini Converter - 3GM

0.0 out of5based on0 customer ratings
(0 customer reviews)
  • Interface: 3G/1.5G HD-SDI Multiplexer

ID: 5648
Part Number: 3GM

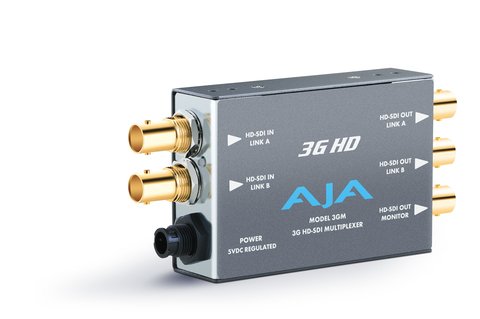

AJA 3GM 3G/1.5G HD-SDI Multiplexer

The 3GM is versatile and economical tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M. 3GM is bi-directional - allowing dual 1.5G to 3G or 3G to dual 1.5G conversion. Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is also compatible with SMPTE259M 270Mb SDI.

  • Compact 3G to/from 1.5G conversion
  • SMPTE425M-AB inputs, 3G outputs configurable to A or B
  • Converts SMPTE425M A to/from SMPTE425M B
  • Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
  • Fully equalizing and re-clocking with jitter attenuation
  • Passes all ancillary data
  • Formats: 3Gb, 1.5Gb, 270Mb Auto Select
  • Video Inputs/Outputs: 2 HD-SDI, SDI (SMPTE 259/292/296/424), 2x BNC
  • Cable Equalization (1694 Coax):
    • 270mb, 350m
    • 1.5Gb, 200m
    • 3Gb, 120m
  • Input/Output Return Loss: >15db, 270Mb - 3Gb
  • Power: +5VDC Regulated, 6 Watts, Power Supply Required (included with purchase)
  • Size: 4.6" x 2.4" x 1" (117 x 61 x 25mm)
ID: 5648 BRAND: AJA PART NUMBER: 3GM Category:

Technical Specifications

Brand AJA
Product Type Analog and Digital Converters
Model Mini Converter - 3GM
Part Number 3GM
Interface 3G/1.5G HD-SDI Multiplexer
