  • Interface: Dual HD-SDI to 3D Multiplexer

ID: 5630
Part Number: Hi5-3D

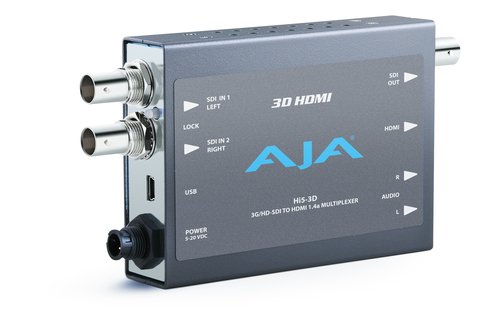

AJA Mini-Converter - Hi5-3D

AJA Hi5-3D is a 3D video multiplexer that combines and synchronizes two 3G or HD-SDI inputs into various multiplexed 3D formats for output via HDMI and HD-SDI.

  • HD-SDI to HDMI 1.4a with additional SDI output
  • 10-bit HDMI 1.4a support including 3D and embedded audio
  • Additional 2-Channel RCA jack audio output
  • Setup via Dipswitch or PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
  • Uses 5-20V power supply (included with purchase)
  • 5 year warranty
  • Input Formats:
    • 720p 50/59.94/60)
    • 1080i 50/59.94/60)
    • 1080p23.98)
    • 1080p24)
    • 1080p25)
  • Video Inputs: Dual HD-SDI (auto-selected), SMPTE-292/296/424, 2x BNC 1 SDI for left eye input (10-bit) 1 SDI for right eye input (10-bit))
  • Video Output:
    • 10-bit HDMI v1.4a)
    • 1 HD-SDI output, 10-bit)
  • Audio Outputs:
    • HDMI embedded audio, 2 or 8 channels)
    • 2 RCA-style analog outputs at -10dBV (nominal), User assignable channels)
  • Power: +5VDC Regulated, 3 Watts, Power Supply Required (included with purchase))
  • Size: 5.8" x 3.1" x 1 (147mm x 79mm x 25mm)
ID: 5630 BRAND: AJA PART NUMBER: Hi5-3D Category:

Technical Specifications

Brand AJA
Product Type Analog and Digital Converters
Model Mini Converter - Hi5-3D
Part Number Hi5-3D
Interface Dual HD-SDI to 3D Multiplexer
