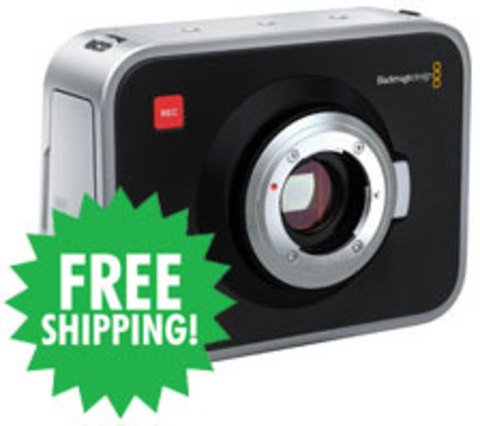

Blackmagic Design Cinema Camera MFT

out of5based on0 customer ratings
(0 customer reviews)
Blackmagic Design
  • Media Format: SSD
  • Built-in Microphones: Integrated Mono Microphone
  • Weight: 3.75 lbs.
  • Connectivity: Thunderbolt / USB 2.0 mini B

ID: 4788



Blackmagic Design Cinema Camera MFT

Free Shipping applies to Ground Shipping in the Continental US.

Blackmagic Design's Cinema Camera with MFT Mount uses the latest digital cinema technology to give your videos that timeless feature film look. You get a built-in SSD recorder, popular open standard uncompressed RAW and compressed file formats, compatibility with quality Passive Micro Four Thirds (MFT) lenses, LCD touchscreen monitoring, plus metadata entry all packed into an exciting hand held design! The Cinema Camera uses a high resolution 2.5K image sensor and a wide dynamic range, making it ideal for independent film, television commercials, and episodic TV production. It captures a super wide dynamic range of 13 stops into 12-bit DNG files, so your images look truly cinematic. This preserves detail in both shadows and highlights, and even handles indoor shots while keeping the details of any images captured through windows. All sensor data is kept so you can make informed creative decisions during the color grading process with the included DaVinci Resolve software. Cinema Camera features built-in record and monitoring, so it easily replaces video-only cameras at sporting events, weddings, music video shoots, and more.

MFT Mount Model

Get an even wider range of lens compatibility with the Blackmagic Cinema Camera MFT with Passive Micro Four Thirds (MFT) mount! Features compatibility with a wide range of manually operated lenses, while also being easily adapted to other mounts such as PL mount via third party adapters. With Blackmagic Cinema Camera you are not locked into any specific lens and you can choose the lens you need based on the creative style of your shot!

Metadata Entry

Blackmagic Cinema Camera is the first camera to feature built-in metadata entry so your files include information compatible with popular editing software. Simply tap the capacitive LCD touchscreen to display the slate where you can enter metadata information such as shot number, search tags, scene number, timecode and more. You can even set shot number and other data to increment automatically. Metadata is compatible with popular software such as Final Cut Pro X and the included DaVinci Resolve.

SSD Recorder

The built-in 2.5" SSD Recorder allows 2.5K uncompressed CinemaDNG Raw 12-bit capture, as well as Apple ProRes and Avid DNxHD compressed video files. When you've finished shooting, simply connection the SSD to your computer and edit or color your footage straight from the disk. With Apple ProRes and Avid DNxHD video formats you can record for more than 5 hours on a single 480GB SSD.

The following Blackmagic-certified SSDs, recommended for RAW CinemaDNG capture or compressed video capture with the Cinema Camera MFT are available at TapeOnline:

Standard Connections

Blackmagic Cinema Cameras only use standard connections, so you never have to worry about hunting for custom cables. The Cinema Camera MFT has jack mic/line audio inputs for recording the highest quality uncompressed audio, as well as 3 Gb/s SDI out for on set monitoring or for sending to live production switchers (4 channels in HD-SDI). Also included is 12V to 30V DC input for power and battery charging, 3.5mm headphone socket, LANC remote control, and high speed Thunderbolt port for computer capture (as well as USB 2.0 mini B connector for software updates and configuration).

Touchscreen Display

The 5" (800 x 480 resolution) Touchscreen lets you see your shots, or play back footage from the SSD using the transport control buttons below the screen. Enter shot data and update settings from the touchscreen, and double tap to zoom the image. The data strip displays information on the screen such as record status, shutter angle, ISO, battery level, record time and more.

What's Included

Blackmagic Cinema Camera MFT includes sun shield, 12V AC adapter power supply, carry strap, UltraScope waveform monitoring software, Media Express software for video capture from the camera's Thunderbolt port, and a full version of DaVinci Resolve Software for Mac OS X and Windows.

Key Features

  • Shooting Resolutions: 2.5K RAW at 2432 x 1366, ProRes and DNxHD at 1920 x 1080
  • Frame Rates: 23.98p, 24p, 25p, 29.97p, 30p
  • Integrated mono microphone and mono speaker
  • 3 x 1/4"-20 UNC thread mounting points on top of camera, 1 x 1/4"-20 UNC thread tripod mount with locator pin
  • Integrated Lithium-ion Polymer rechargeable battery with 90 minute battery life and 2 hour charge time (when not in use)
  • Storage: Removable 2.5" SSD (Mac OS Extended or exFAT format. SSDs can be formatted on any Mac or use Mediafour MacDrive, not included, on a Windows PC)
  • 5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video on a 256 GB solid state disk, Compressed HD formats fit more than 5 times the amount of RAW video
  • Uncompressed Recording Formats: RAW 2.5K CinemaDNG
  • Compressed Recording Formats: Apple ProRes and Avid DNxHD, all compressed recording in 1920x1080 10-bit YUV with choice of Film or Video Dynamic Range
  • 166.2mm by 113.51mm x 126.49mm
  • 1 Year Limited Manufacturer's Warranty
ID: 4788 BRAND: Blackmagic Design PART NUMBER: CINECAM26KMFT Category:

Technical Specifications

Brand Blackmagic Design
Product Type Video Cameras and Recorders
Model Cinema Camera MFT
Media Format SSD
Built-in Microphones Integrated Mono Microphone
Weight 3.75 lbs.
Connectivity Thunderbolt / USB 2.0 mini B
