Blackmagic Design UltraStudio Express

out of5based on0 customer ratings
(0 customer reviews)
Blackmagic Design
  • Formats:
  • Media Type:
  • HDV 720p Runtime (32GB Card):
  • HDV 720p Runtime (16GB Card):
  • HDV 1080i Runtime (32GB Card):
  • HDV 1080i Runtime (16GB Card):
  • DV Runtime (32GB Card):
  • DV Runtime (16GB Card):
  • Interface: Thunderbolt
  • DVCPRO HD Run Time (100Mbps):
  • DVCPRO 50 Run Time (50Mbps):
  • DVCPRO Run Time (25Mbps):
  • XDCAM SP Run Time (25Mbps):
  • XDCAM HQ Run Time (35Mbps):
  • Weight:
  • Dimensions:
  • Capacity: Capture/Playback only

ID: 4187



Blackmagic Design UltraStudio Express

UltraStudio Express allows you to capture and playback between your camera and your computer. Transfer saved footage or live feed from a camera via HDMI or SDI to your computer via Thunderbolt™, in formats ready to be edited. You can even monitor captured footage on a top-quality HDMI monitor in the best resolution for perfect color correction. Easily connect to decks such as HDCAM-SR, HDCAM, D5, Digital Betacam, DVCPRO HD and more for frame accurate editing and recording! UltraStudio files are captured in open standard DPX and QuickTime format, compatible with all the most popular software. Works flawlessly with Final Cut Pro X, Final Cut Pro 7, Media Composer 6, Premiere Pro CS6, After Effects, Nuke, Photoshop, DaVinci Resolve, Avid Pro Tools, and more!

UltraStudio works with compressed and uncompressed video, and allows resolutions up to 1920 x 1080 HDTV. Blazing fast Thunderbolt™ transfer speeds up to 10Gb/s handle even the highest of resolutions with ease! Note: Thunderbolt™ cable NOT included.

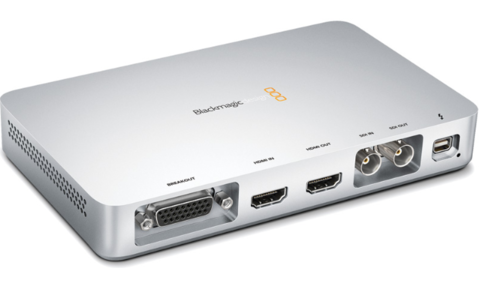

Blackmagic's UltraStudio Express has built-in SD/HD SDI, HDMI, and Thunderbolt™ connections. Device comes with two breakout cables to expand to composite, component, S-Video, RCA audio, AES/EBU Audio on XLRs, sync input, gunlock, and RS422 connections.

Express model features a pocket-sized design and is powered by the Thunderbolt™ connection for ultimate portability. Looks great with your laptop or on your desktop!

Included Software:

  • Media Express: batch capture and playback in uncompressed YUV and RGB QuickTime, AVI and DPX, or compressed ProRes, DVCPRO and MJPEG files.
  • Disk Speed Test: check disk array with easy-to-understand results in video frames per second.
  • LiveKey: insert logos and graphics in real time, using SDI outputs.
  • Blackmagic System Preferences
  • Blackmagic driver

Requires a computer with Thunderbolt™ running Mac OS X 10.7 Lion or later,  Mac OS X 10.8 Mountain Lion or later, Windows 7 or Windows 8 release preview.

SD Format Support: 625/25, 625p PAL and 525/29.97, 525p NTSC, 480p

HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30 and 1080p30.

Product is covered by a 3 Year Limited Manufacturer's Warranty.

ID: 4187 BRAND: Blackmagic Design PART NUMBER: BMD-BDLKULSDEXPRESS Category:

Technical Specifications

Brand Blackmagic Design
Product Type Portable Recorders
Model UltraStudio Express
Interface Thunderbolt
Capacity Capture/Playback only
