Blackmagic Design Universal Videohub 72

0.0 out of5based on0 customer ratings
(0 customer reviews)
Blackmagic Design
  • Product Line: Routing and Distribution

ID: 5949
Part Number: VHUBUV/72CH

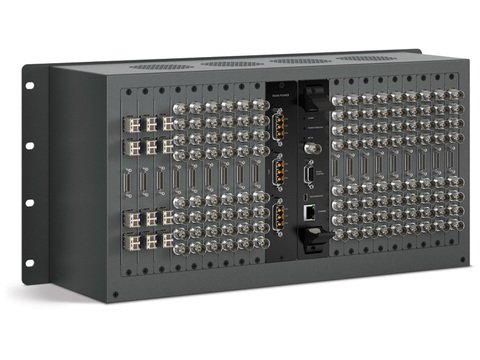

Blackmagic Design Universal Videohub 72

Rack frame lets you add up to 18 BNC SDI or optical fiber SDI interfaces plus a single 72 x 72 crosspoint and power card. Includes removable fan tray and fans.

  • SDI Video Output: Up to 72 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.
  • Reference Input: 1 x Black burst and Tri-Level Sync for all SD, HD and 2K SDI and optical connections.
  • Multi Rate Support: Auto detection of SD, HD or 3G-SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
  • SDI Video Input: Up to 72 x SDI/HD-SDI, 3G-SDI and ASI. Can be BNC SDI or optical fiber SDI.
  • Updates: USB 2.0 high speed (480Mb/s) interface.
  • Device Control: Up to 72 bidirectional Sony™ compatible RS-422 deck control ports via breakout cable.
  • RS-422 Router Control: 1 x input for controlling router crosspoint switching.
  • Router Control: Use either RJ45 Ethernet or Smart Control or Master Control shared over IP network.
  • Router Configuration: Use either RJ45 Ethernet or USB 2.0 (IP setting only) high speed interface shared over IP network.
  • Reclocking: On all SDI outputs.
  • GPI: GPI connector for connecting external alarms.
  • SD Format Support: 625/25 PAL and 525/29.97 NTSC.
  • HD Format Support:
    • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080PsF23.98, 24, 25, 29.97, 30. 1080i50, 59.94, 60
    • 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
  • 2K Format Support: 2048 x 1556p23.98, 24, 25.
  • SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
  • SDI Video Sampling: 4:2:2 and 4:4:4.
  • SDI Color Precision: 4:2:2 and 4:4:4 10-bit.
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Space: YUV or RGB.
  • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
  • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
  • Internal Software Upgrade: Via included firmware updater application.
  • Software Control: Router control included free for Windows™ and Mac OS X™.
  • Power Supply: Redundant power supply options are available.
  • Power Fail Protection: Router connections preserved and restored instantly at power on independently of host computer.
  • 18.98 x 8.7 x 6.33 in. / 14.11 lbs.
  • Physical Installation: 5 rack unit size. Less than 6 inches deep.
  • Operating Temperature: 0° to 40° C (32° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • What's Included: Universal Videohub 72
  • 3 Year Limited Manufacturer's Warranty
ID: 5949 BRAND: Blackmagic Design PART NUMBER: VHUBUV/72CH Category:

Technical Specifications

Brand Blackmagic Design
Product Type Blackmagic Design
Model Universal Videohub 72
Part Number VHUBUV/72CH
Product Line Routing and Distribution
