Blueshape CVTR2 2-Channel Portable V-Lock Battery Charger

0.0 out of5based on0 customer ratings
(0 customer reviews)
  • Compatibility: V-Mount batteries

ID: 5817
Part Number: CVTR2

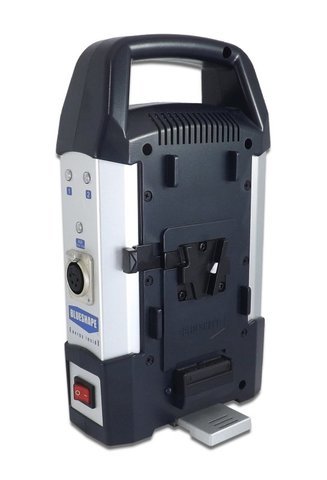

Blueshape CVTR2 Portable V-Lock Dual Battery Charger

A rotating support in the base stands the compact CVTR2 upright to charge two 70Wh batteries simultaneously in 2.5 hours or two 210Wh units in around 6.5 hours.  This unit can be powered by the PWCAR vehicle adapter. An auxiliary DC output provides 13.8V each via an XLR connector.

Designed exclusively for V-Lock Li-Ion batteries, CVTR2 charges 2 V-Mount batteries in sequence. With its compact size, this charger is easy to carry in a bag. Featuring a strong and robust assembly, CVTR2 isideal for travel. Rotating foot support increases stability and reduces bulkiness when not in use. IPCS and CTP features provided for improved battery and charger protection. Provided with 1 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket. Can be powered either by AC or alternatively by DC; this feature makes the CVTR2 an ideal companion for on the road charge: it can alternatively be powered by the innovative, In-car charge adapter, PWCAR. Plug to the cigarette lighter socket and go. USB connection to interface the CVTR2 with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (not included).


  • Input: AC 100-240V 47-63Hz
  • Output:
    • 2x DC 16.8V 4.8A
    • 1x AUX DC 13.8V
    • 110W max
  • Charging current: 4.0A per channel
  • Data socket
  • Size: 250 x 145 x 80mm (9.84" x 5.51" x 3.15")
  • Weight: 0.7Kg (1.55lbs)
ID: 5817 BRAND: Blueshape PART NUMBER: CVTR2 Category:

Technical Specifications

Brand Blueshape
Product Type Battery Chargers
Model CVTR2 2-Channel Portable V-Lock Battery Charger
Part Number CVTR2
Compatibility V-Mount batteries
